how to boot this ecu Mitsubishi mirage 2014.Thank in advance.
- Attachments
-

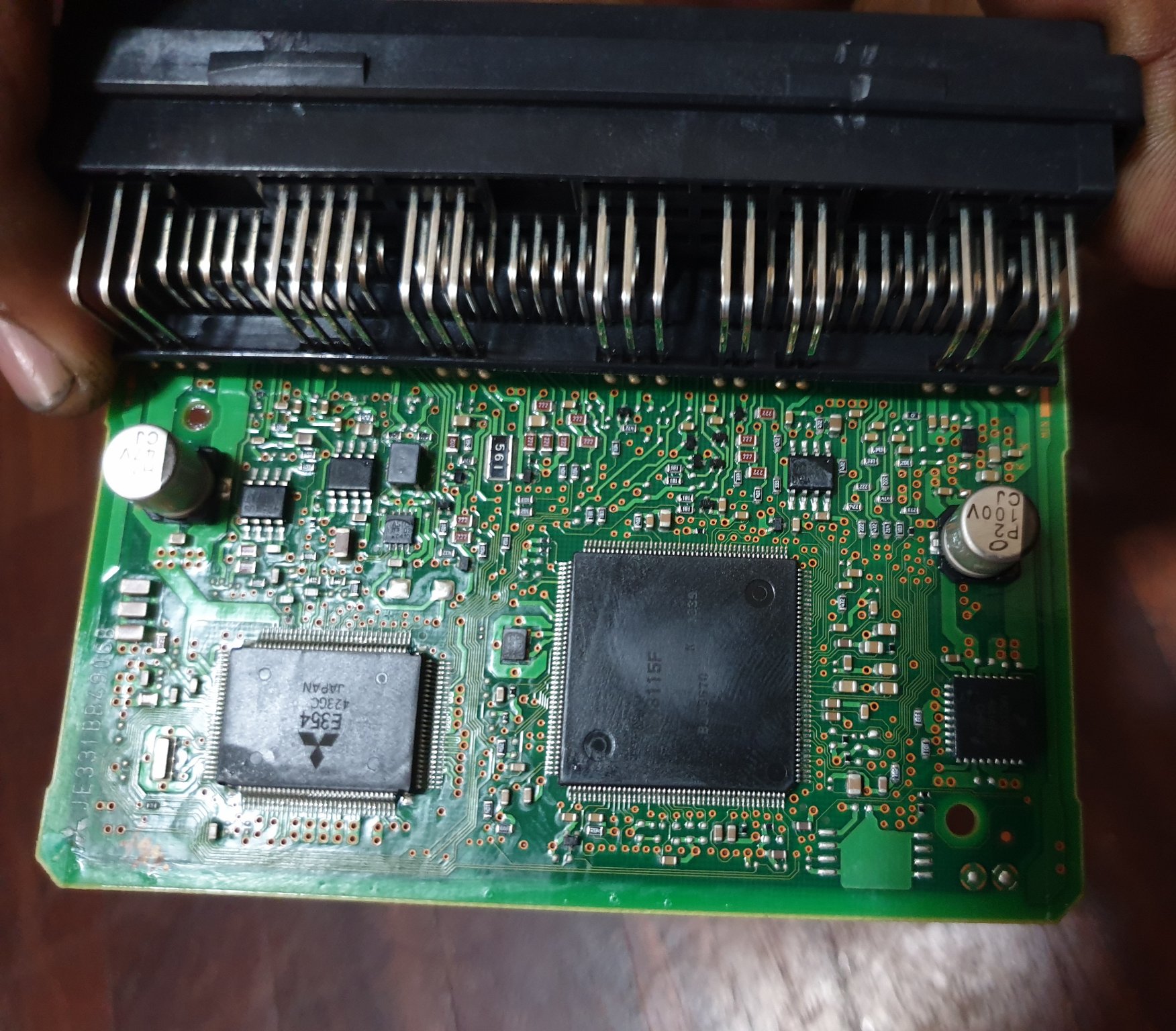

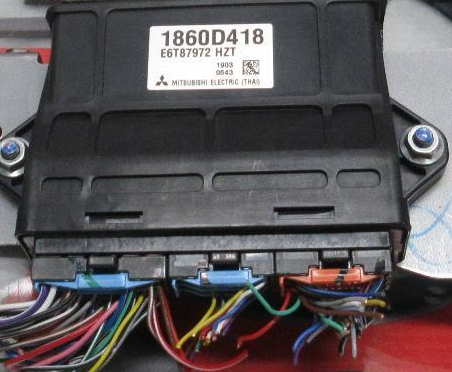

- 20221020_203337.jpg (429.67 KiB) Viewed 267 times
-
- 20221020_203324.jpg (709.87 KiB) Viewed 267 times
Re: Mitsubishi mirage boot pin

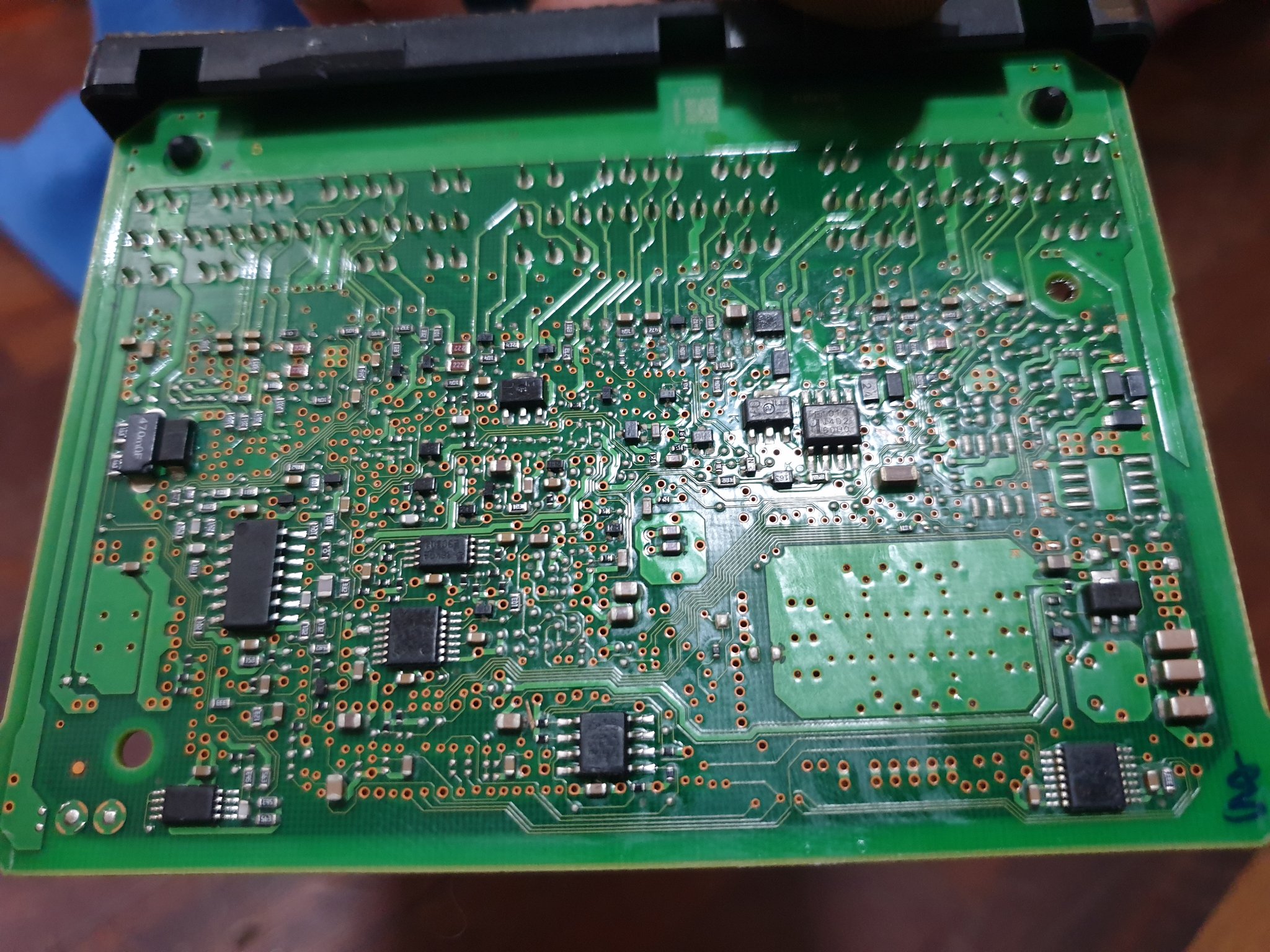

- 20221021_002809.jpg (473.52 KiB) Viewed 261 times
Re: Mitsubishi mirage boot pin
Also need this Mirage ECU boot pin - Do we know the Boot Pin now?
Re: Mitsubishi mirage boot pin
Check this schematics diagram http://mmc-manuals.ru/manuals/mirage/ma ... 300-90.pdf
FMB pin on engine control unit
FMB pin on engine control unit
In backup we trust.
Re: Mitsubishi mirage boot pin
Thankyou for your reply Kolyandex!, I believe though that the manual schematic diagram is for a different type ECU used in Mirage cars - it shows an ECU with pins up to 130.kolyandex wrote: ↑06 Nov 2023, 15:25Check this schematics diagram http://mmc-manuals.ru/manuals/mirage/ma ... 300-90.pdf
FMB pin on engine control unit
The ECU type in the photos in the thread are for an ECU with up to 98 Pin ...must be two different types.
The 130 Pin ECu's have 4 plugs connectors, and the 98Pin ECU has 3 plug connectors.
https://www.ebay.com/itm/276036713239?
I can't find the pinout for the 98 pin ECU so far a mystery!
Re: Mitsubishi mirage boot pin
The Two Types of Mirage ECU....98 Pin and 130 Pin, 2012+
- Attachments
-

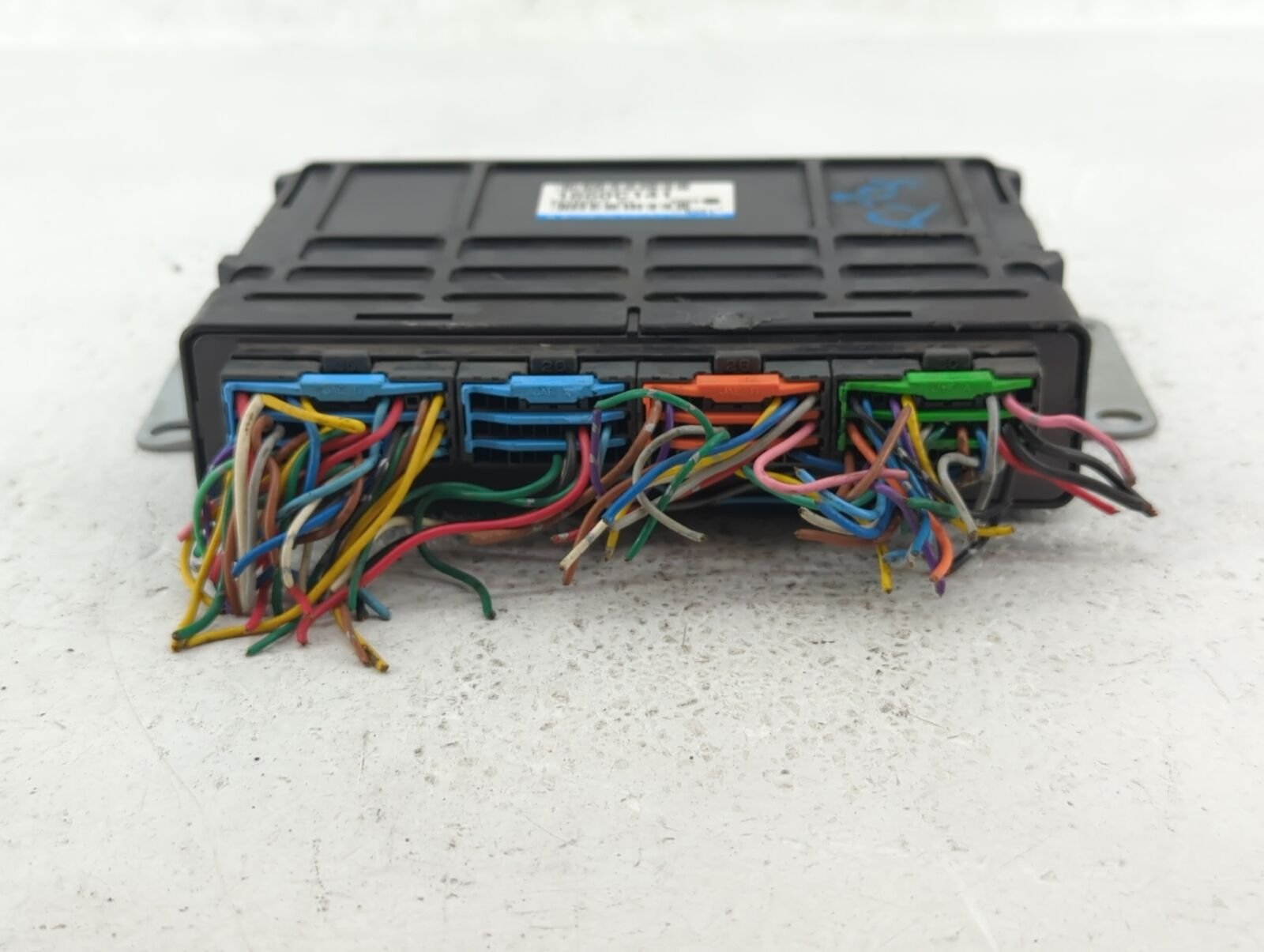

- 4 connector mirage ecu 130 pin.jpg (157.57 KiB) Viewed 129 times
-

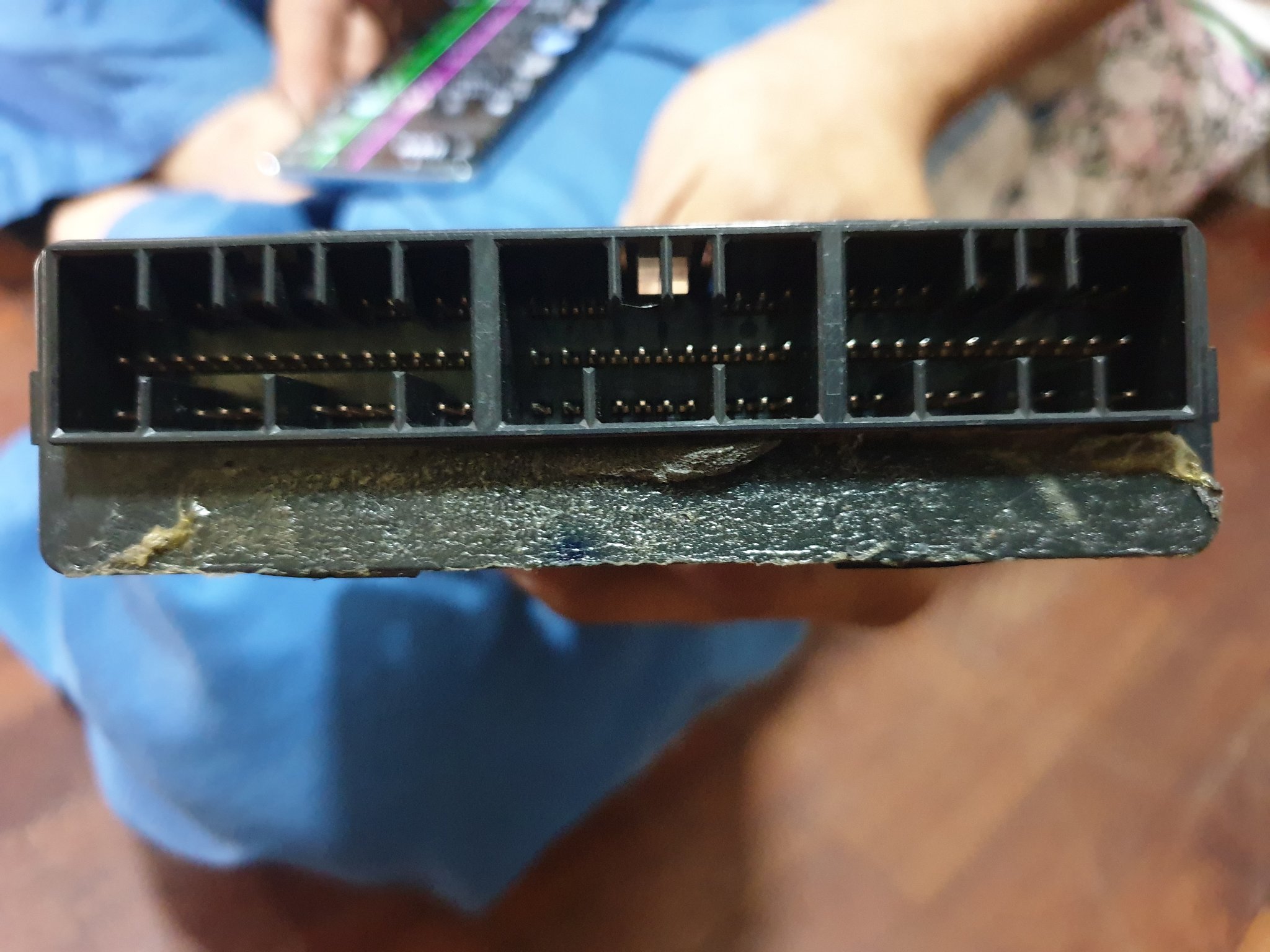

- 3 Connector Mirage ECU - 98 PIN.png (264.85 KiB) Viewed 129 times
